Product Series Introduction

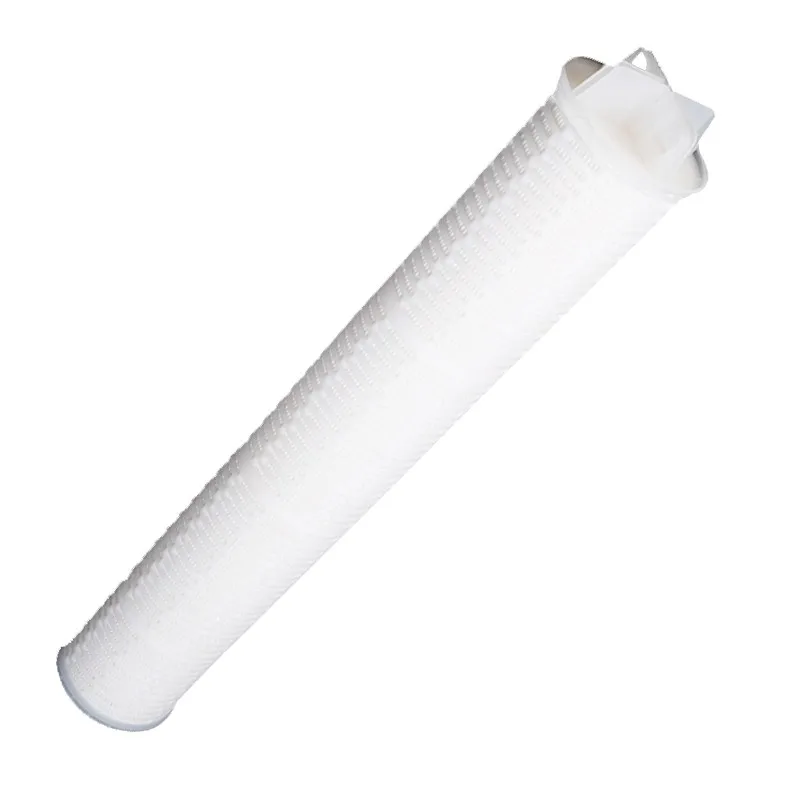

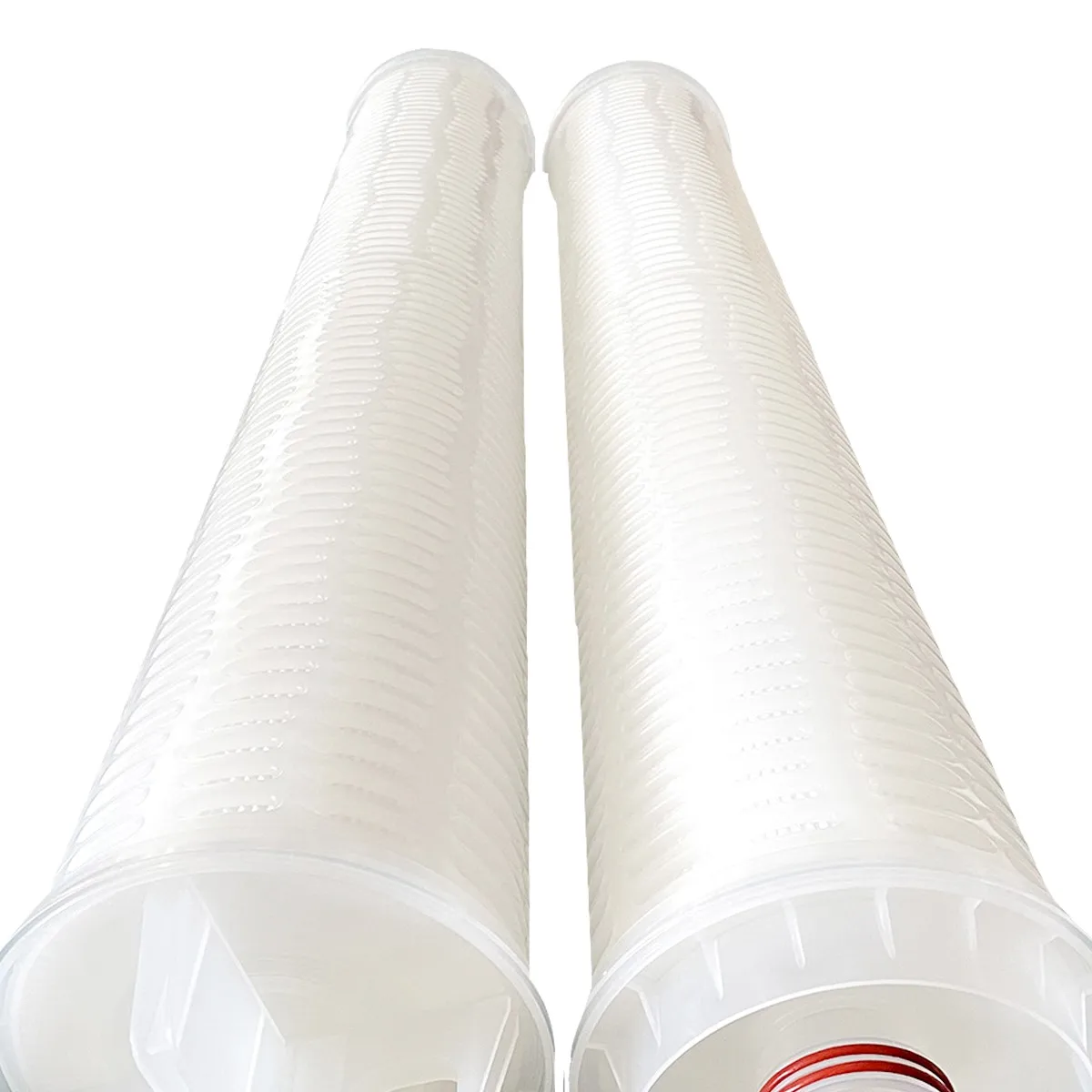

Jielv HFGF Series High Flow Glass Fiber pleated filter cartridge is made from depth fine glass fiber media. The filter has a big diameter of 6 inches for high-flow filtration application. This type with single open, without inner core, inside to outside flow filtration ensures all particles will be intercepted at the inside of the filter.  General design with features of high flow rate, long service life, and less manpower in varied applications.





• Fiberglass filter media, High flow rate, High efficiency

The general design of this type of filter cartridge makes the filter meet high demanding filtration efficiency.

 Wide chemical compatibility

 Polypropylene components with fine glass fiber filter media provide wide chemical compatibility, suitable for use in varied demanding filtration fluids.

 High dirt holding capacity, long service life

With depth fine PP non-woven fabrics and scientific design, the filter has a good structure which has a high dirt holding capacity, long service life.



•  Food & beverage;

•  Oil & chemical;

• Steel plant water treatment;

•  Power plant water treatment;

•  Machinery & Equipment;

•  Microelectronics;

•  Sea water desalination;



OD: 152mm
Length: 20",40", 60"
Media: Glass fiber
Support: PP
Cage/ core/End cap: PP
Sealing: Silicone, EPDM, Viton,E-FKM
Max.Operating temperature: 90°C
Max.Operating Pressure: 3 bar@21°C

Ordering Code

  Removal Rating End Cap Type Length Seal Material Core
 HFGF  0.5=0.5μm B=Belt 20=20" S=Silicone P=PP
 1=1μm 40=40"  E = EPDM Blank=no core
3=3μm  C=Cage 60=60" V = Viton
5=5μm   F= E-FKM
10= 10μm
20= 20μm
