PP Pleated High Flow Filter Cartridge Absolute Remove Rating PP Pleated High Flow Filter Cartridge Absolute Remove Rating

Share this:

Product Series Introduction

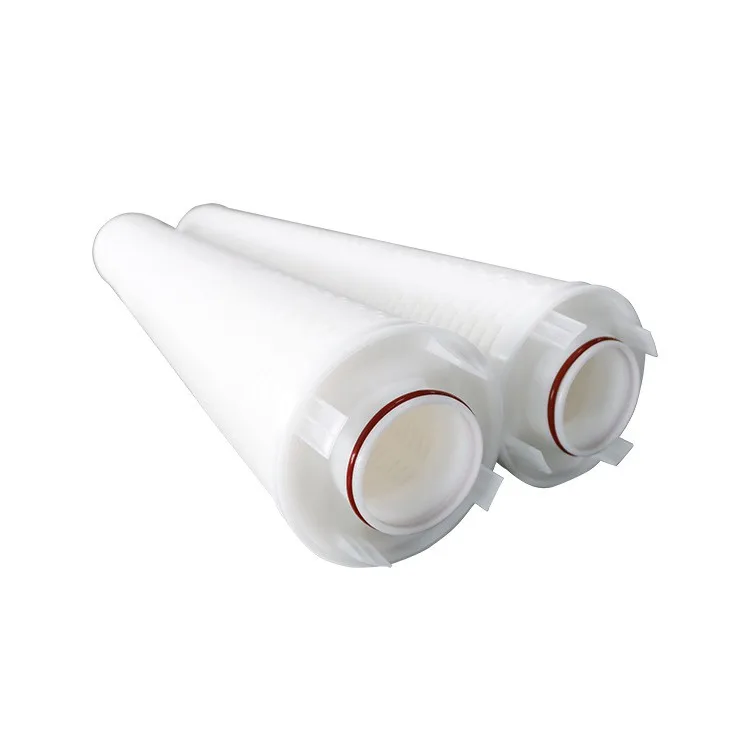

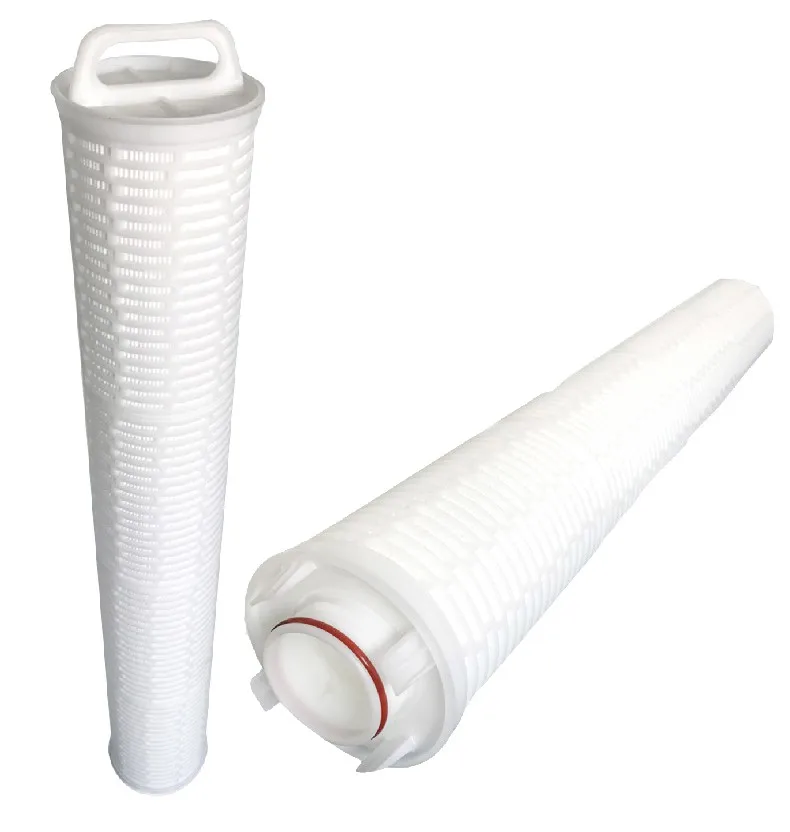

Jielv HFSZ-A Series High Flow PP pleated filter cartridge is made from depth fine PP non-woven fabrics. The filter has a big diameter of 6.5inch/165mm, single open-ended,  outside to inside flow filtration.

 A big diameter, pleated design, and absolute removal ratings make the filter with high dehas a big filtration area. A practical design structure ensures high demanding filtration quality.


• Absolute remove ratings, High efficiency

The optimal depth filtration design and absolute remove ratings make the filter meet higher demanding filtration quality.

 100% PP components

100% polypropylene components provide wide chemical compatibility, suitable for use in varied fluids.

 Higher dirt holding capacity, longer service life

With depth fine non-woven fabrics and scientific design, the filter has a good structure for high dirt holding capacity, which reaches to long service life.

 Replacement type for 3M CUNO HF740/760

JIELV filter with a full line of connectors suitable as replacement types for Pall Marksman, 3M HF740B, Pentair Aqualine, PECO-XStream Pure, Parker Megaflow, Everblue, etc.


•  Food & beverage;

•  Oil & chemical;

• Steel plant water treatment;

•  Power plant water treatment;

•  Machinery & Equipment;

•  Microelectronics;

•  Sea water desalination;




OD: 175mm
I.D.: 76mm
Length: 40" ,60"
Media: PP
Support: PP
Cage/ core/End cap: PP
Sealing: Silicone, EPDM, FKM,E-FKM
Max.Operating temperature: 82°C
Max.Operating Pressure: 35Psid

Ordering Code

  Removal Rating End Cap Type Length Seal material Core
 JHFA 0.5= 0.5μm S=SOE   S=Silicone P=PP
 1=1μm 40=40"  E = EPDM
 3=3μm   60=60" N=NBR
 5=5μm    V = Viton
10= 10μm     B=Buna
20= 20μm
40= 40μm
70= 70μm
100= 100μm
