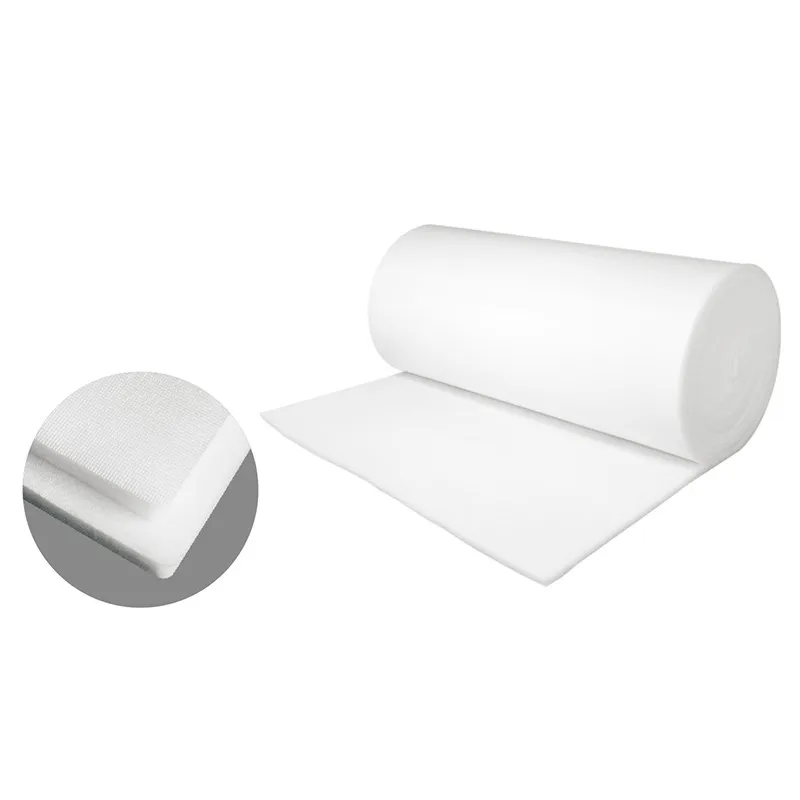

F6 650gms Medium Efficiency Ceiling Filter Media F6 650gms Medium Efficiency Ceiling Filter Media

Share this:

Product description

Medium Efficiency Ceiling Filter Media, hot-blast air fusion technology with elastic and tenacious fiber combed to form compact filter structure. Air intake side surface fiber treated with sticky glue, improving the capture of the particles adhesion. Air outlet side pasted with cloth or mesh, in order to ensure the strength and effect of airflow uniformity, with better resistance to corrosion of general solvent, weak acid and Weak alkali.

Features



●   Low resistance

●   Flexibility

●   High dust holding capacity

●   Air outlet side pasted with cloth or mesh



Application



Mainly use for air intake system and painting workshops which are strict with spraying technology.

1.  Filtering micro particles in spray booth air inflow system

2.  Dust removal in Painting equipment, painting system and painting workshop.

3.  Secondary filtering in high-quality painting system and air intake system of baking equipment.

4.  Medium filter media for producing air filter.

5.  Can be customized in pad/pad with frame/roll.





Specifications



Filter grade: F6/M6 (EN779); EU6 (EUROVENT)

Inflaming retarding grade: F1 (DIN 53438)

Humidity: ≤100%RH

Filter particles: ≥1μm

Final pressure: 400Pa (suggested)

Temperature:≤120℃ maximum in continue service

Average arrestance: ≥99%(ASHRAE52.1-1992)

Dust holding capacity: 650g/㎡

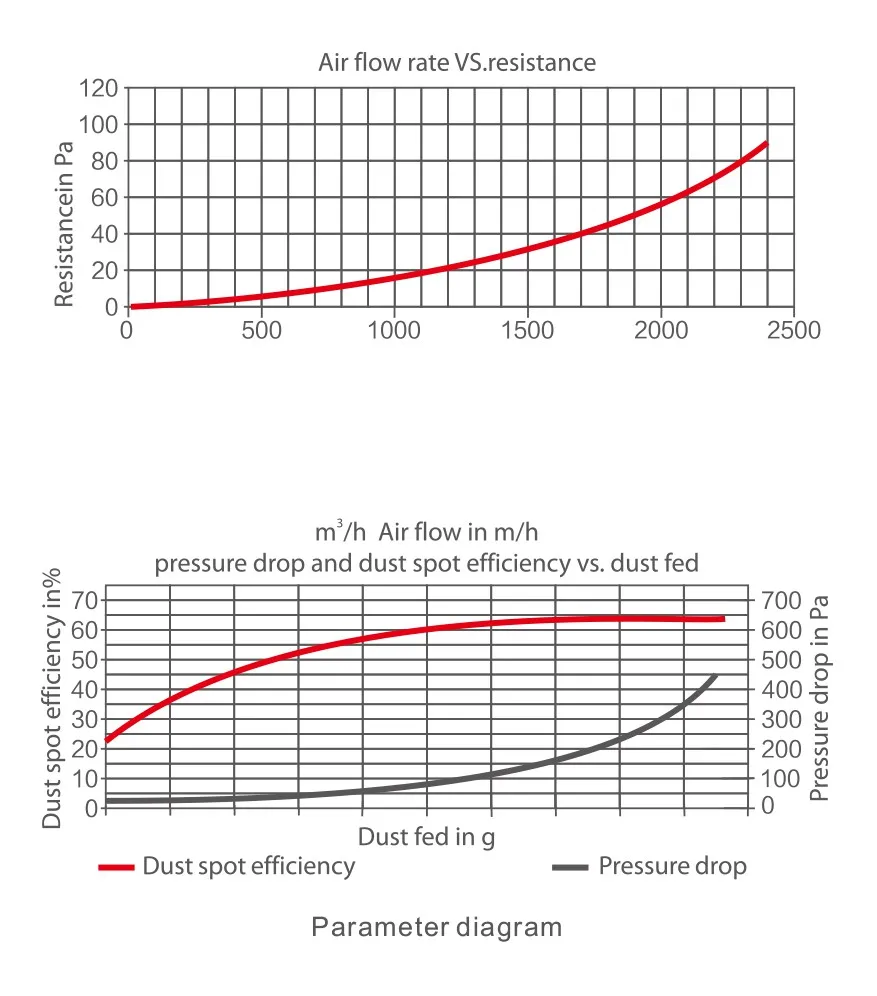

Technical parameters



       Model       Dimensions

Rated air velocity

(m/s)

Initial pressure

(Pa)

Initial air flow

(m³/h)

Length(m) Width(m) Thickness(mm)

JL-M 680

14/21 1.6/2 22 土 2 0.25 ≤45 900

Remark: Other specifications can be customized
