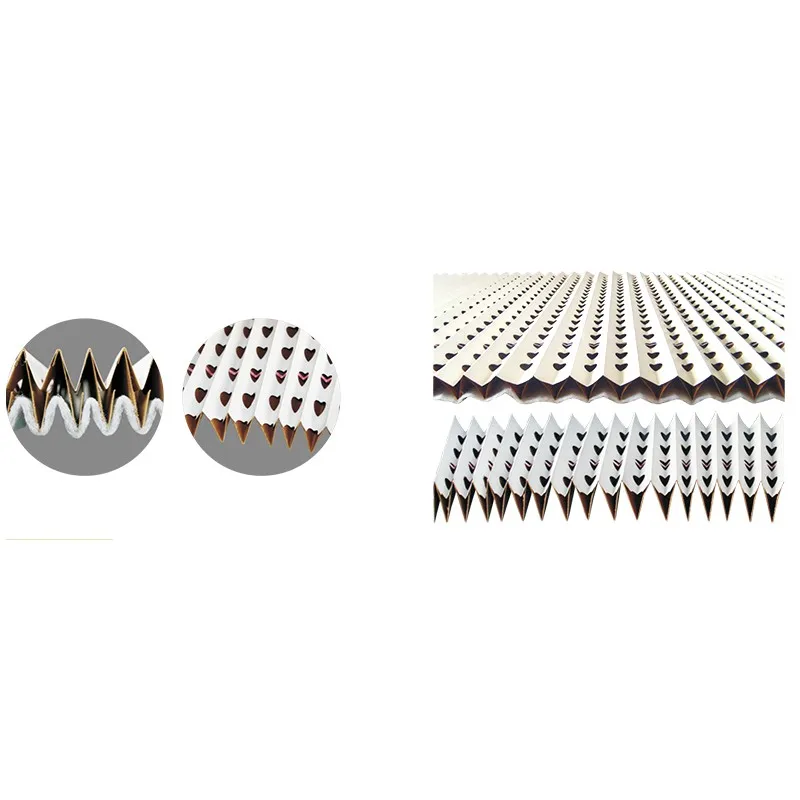

V Type Filter Paper, simple paint mist particles and powder recycling process, with no secondary pollution.Both Horizontal (downward suction type ) or vertical (side suction type }operational.Better filtration performance when combined with filter cotton media.
● Low air flow resistance , maximum filtration effect, high dust holding capacity.
● High- quality double brown packing paper made, rigid adhesion and durable.
● Less equipment investment , noise-proof and easy installation.
● Long operation time & cost; no frequent replacement required, usually 240-500 hours operation time without any issues.
Painting/coating industry exhaust gas emission purification and filtration.
1. Applicable in various industries. Capture of spray paint particles or dust particles, reduce air pollution, maintain a friendly working environment,
reduce gas emissions to the environment.
2. Used as exhaust gas purification system.
3. Arbitrarily customized cut or framed ,or solely used as filter or used in one whole piece.

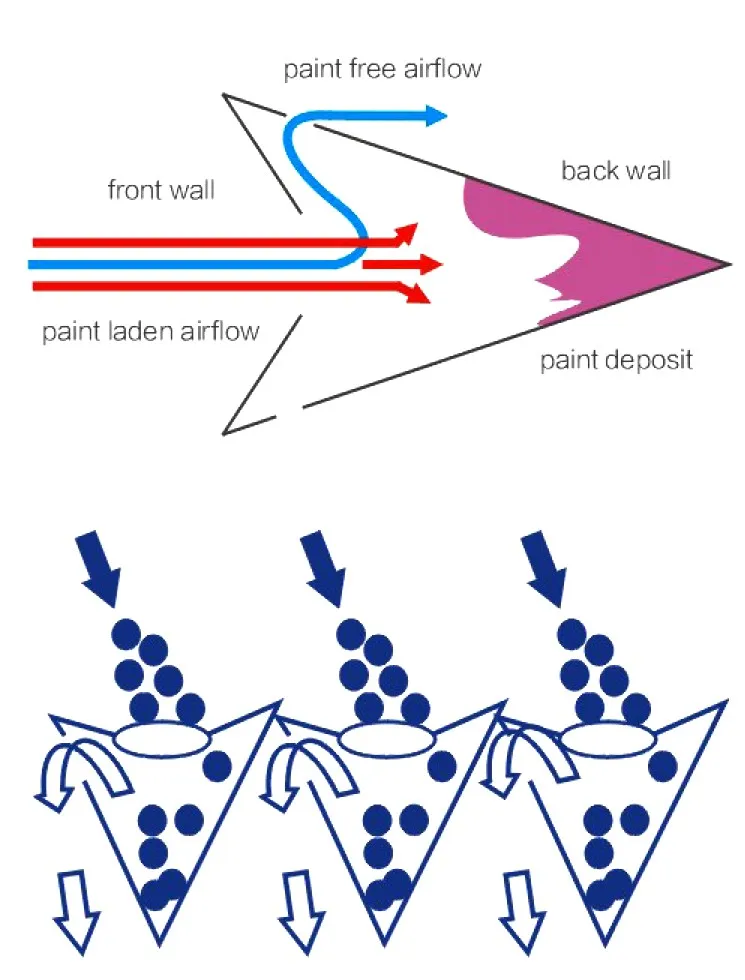

The V type design filter paper pockets offers 2~5 times better filtration performance compared to ordinary stretching filter media or fiber glass filter media.
Filter objects: paint particles and dust particles
Stretch break: 50mm
Flame retardant grade: K1(DIN 53438)
Humidity: ≤80%RH
Aperture: 25mm
Hole distance: 20mm
Final resistance: 150Pa (suggested)
Temperature: ≤100℃ maximum in continue service
Instantaneous temperature resistance: ≤120℃
| Model | Dimensions |
Filter efficiency (%) |
Rated air velocity (m/s) |
Initial pressure (Pa) |
Paint capacity (kg/㎡) |
||
| Length(m) | Width(m) | Thickness(mm) | |||||
| JL-PA 60 | 10 | 0.75 | 60 |
≥85% with cotton ≥98% |
1 |
≤50 with cotton≤70 |
12 |
| 0.9 | |||||||
| 1 | |||||||
| 1.2 | |||||||
|
JL-PA 65 |
10 | 1.25 | 65 | ||||
|
Remark: Other specifications can be customized |
|||||||
